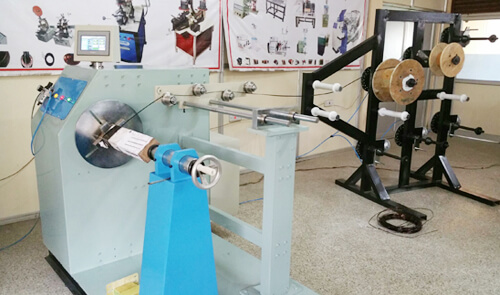

MODEL - CLW 800 LHV Technical Details & Features
| 1 | Winding Length | 800mm |
| 2 | Coil Swing Dia | 600mm |
| 3 | Wire Dia | 20- 5 swg round (STRIP MAX 5/20MM) single / parallel |
| 4 | Total Turns | Max. 99999.9 |
| 5 | Traverse | 1 KW SERVO Motor with drive |
| 6 | Taps | 5 |
| 7 | Turns Accuracy | 0.1 Turn |
| 8 | Winding Speed | 10 - 100 RPM (Max) |
| 9 | Supply | 415V 3 Phase |
| 10 | Power | 3 KVA |
| 11 | Display | 7 inch touch screen |
| 12 | Memory Backup (Power-Off) | In Built |
| 13 | Spindle brake | Brake with clutch |
| 14 | Jog Speed | Online |
| 15 | Winding Pitch Edit | Online |
| 16 | Production Count | Online |
| 17 | Password | Programmable |
| 18 | Foot Switch | Provided |
| 19 | Spindle Motor | 3 HP AC Geard Motor1;20 Ratio with VFD |
| 20 | Winding direction | rev/forward provided |
| 21 | Max Coil weight | 150-200 kgs |
