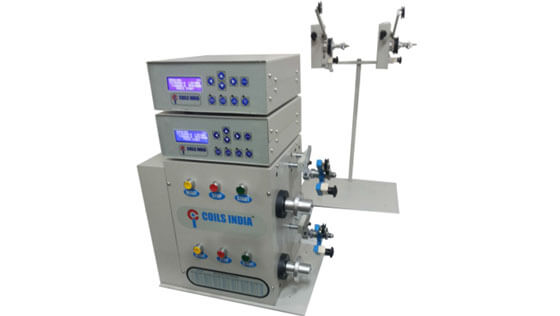

MODEL - CLW 100 2 IN 1 Technical Specification
| 1 | Winding Length | 100mm |
| 2 | Coil Swing Dia | 100mm |
| 3 | Wire Dia | 0.100 to 1.00 mm (40 SWG to 20 SWG) |
| 4 | Total Turns | Max.99, 999 |
| 5 | Traverse | Hybrid stepper motor |
| 6 | Taps | 8 |
| 7 | Turns Accuracy | 0.1 Turn |
| 8 | Winding Speed | 8000 RPM (Max) |
| 9 | Supply | 230 Volts AC |
| 10 | Memory | 499 Programs |
| 11 | Display | 7 inch touch screen |
| 12 | Acceleration | Programmable Auto / Manual |
| 13 | Declaration | Programmable Auto / Manual |
| 14 | Memory Back UP | In Built |
| 15 | Winding Pitch Edit | Online |
| 16 | Wire Cut Indication | Online |
| 17 | Spindle Lock | Online |
| 18 | Jog Speed | Online |
| 19 | Winding Pitch Edit | Online |
| 20 | Production Count | Online |
| 21 | Password | Online |
| 22 | Foot Switch | Online |
| 22 | Spindle Motor | 0.5hp AC induction motor with AC DRIVE. |
