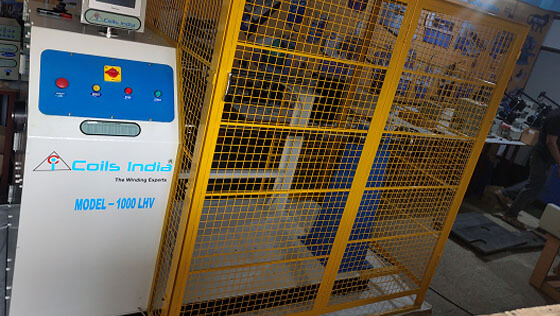

MODEL - CLW 1000 LHV Technical Details & Features
| 1 | Spindle | 1No |
| 2 | Tailstock | Heavy Duty Screw rod – Lever type |
| 3 | Traverse Length | 1000 RPM |
| 4 | Center Distance from Face Plate to tailstock | 1200 mm |
| 5 | Traverse Motor | 1 KW Servo Motor & Drive |
| 6 | Conductor Size | Round & Strip |
| 7 | Coil shape | Rectangular / Round / Square |
| 8 | Max Coil weight | 250 kg |
| 9 | Spindle Motor | 5.5 KW, AC Geard Motor |
| 10 | Display | “7” Touch Screen |
| 11 | Counting | Proximity Sensor |
| 12 | Foot Switch | Start / Stop |
| 13 | Controller | PLC OMRON |
| 14 | Power Supply | 415 V, 50 HP, 3 Phases |
| 15 | Wire Guide Unit | 2 types (For round wire – 1no for Strip Wire – 1No) |
| 16 | Spindle RPM | 60 -100 |
| 17 | Speed Variable | Online |
