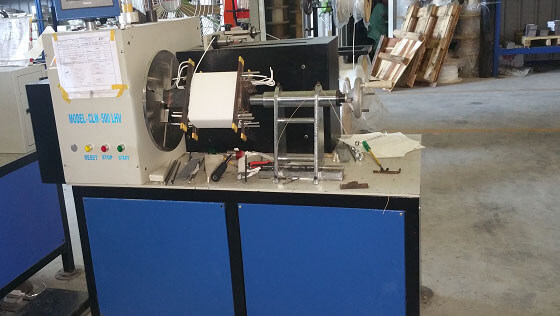

MODEL - CLW 500 LHV Technical Specification
| 1 | Memory | 99 Programs’ Storagev |
| 2 | Turn Set Each Programmes | 99.999 Max Turns |
| 3 | Production Count | Provided |
| 4 | Power Fail Save | Counter Will Not Reset |
| 5 | Wire Gauge | 20 Swg- 10x3 Strips Single/Parallel Winding |
| 6 | Online Traverse Adjust | Stop The Machine Then Adjust |
| 7 | Traverse Motor | Ac Servo Motor With Drive 750 W |
| 8 | Spindle Motor | 3 Hp Ac Geared Motor With Vfd |
| 9 | Brake | Electromagnetic Brake |
| 10 | Winding Pitch Adjust | Provided Online |
| 11 | Every Layer Stop | On/Off. Indication Online |
| 12 | Display | 7 Inch Touch Screen |
| 13 | Jog Speed | Online Key Provided |
| 14 | Supply | 415v 3phase |
| 15 | Winding Speed | 10-100 Rpm |
| 16 | Total Taps | 10 Taps Each Prog Provided |
| 17 | Bobbin Width | 600mm Provided |
| 18 | Bobbin Diameter | 400mm Provided |
| 19 | Coil Weight | Max 50 Kgs |
| 20 | Accelaration Time | Programmable |
| 21 | De Accelaration | Programmable |
| 22 | Turns Indication | 0.1 |
| 23 | Controller Security | Password Option Provided |
| 24 | Foot Switch | Provided To Start And Stop |
